Emergency Microphone (EM-5105)
- Integrates with Fire Alarm System
- Auto Operation and Announcements
- Built-in Mic and Speaker
- Test Function
- Mic and Siren Volume Controls
- Inputs : Pre-Amp, Remote 1 & 2, Timer, Auto Announce, Matrix, Remote Mic
- 24VDC Operation
- Rack Mount (2RU)

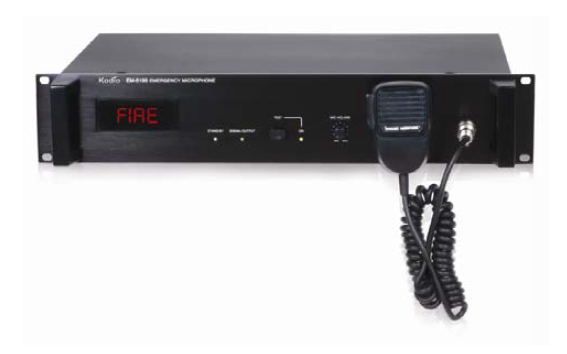

The EM-5105 emergency panel integrates with an existing fire alarm system to facilitate the automatic broadcasting of alarms and announcements. The unit features a built-in monitor speaker and condenser microphone. Mic and siren volume controls are provided on the front and rear panels. A test function is available via the front panel power/test switch. The unit is powered by a 24VDC power source, not supplied. The unit is packaged in a 3.5” high (2RU) rack-mount enclosure.
|Operation Modes||Auto, Test|
|Weight||4kg / 8.8lbs|
|Dimensions mm (W x H x D) inch||482 x 88 x 280 / 19" x 3.5" x 11"|
The emergency microphone shall integrate with an existing fire alarm system to facilities the automatic broadcasting of alarm and announcements. The emergency microphone shall feature a built-in monitor speaker and condenser microphone.
Mic and siren volume controls shall be provided on the front and rear panels. A test function shall be available via the front panel power/test switch.
The emergency panel shall measure 19″(482mm) wide x 3.5″(88mm) high x 11″ (280mm) deep, and shall mount in a standard 19″ rack. The power source shall be 24VDC, not supplied.
The emergency microphone shall be a KODIO model EM-5105.
