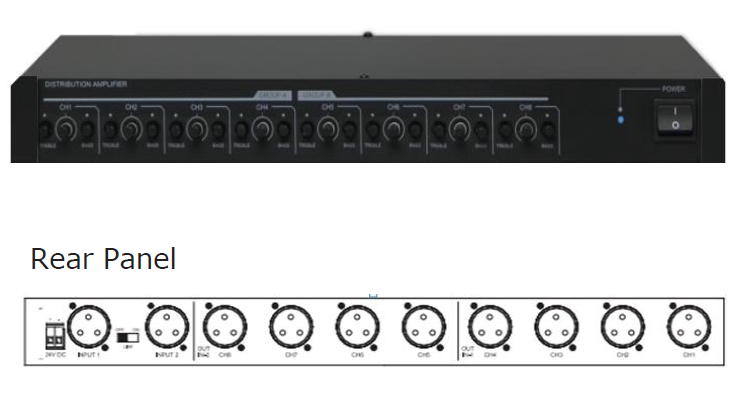

Distribution Amplifier (DA-5208)
Distribution Amplifier (DA-5208) PA System Selangor, Malaysia, Kuala Lumpur (KL), Puchong Supplier, Installation, Supply, Supplies | Unique Amp Sdn Bhd
Features
  • Operates as dual channel 1 input 4 output or single channel 1 input 8 output
  • Individual bass and treble control with volume adjustment
  • Direct input signal to output whenever DC power input not available or whenever power failure occurs

Description

DA-5208 shall be used to amplify incoming audio signal of line level and thereafter linked to several amplifiers to avoid sound distortion. It consists of 2 sets of 1 in 4 out configuration and can be set as 1 in 8 out format. Each output channel has its individual bass and treble controls, facilitating tone setup of the amplifier to suit the type of speakers used as well as the acoustic environment.


Technical Specifications
Operating voltage 24 VDC 1A

Power consumption 2.4W

Configuration 1 in x 8 out or 2 in x 4 out

Input level Line : 1V rms max

Input impedance 10 K Ohm

Output gain + 4 dBu

Output impedance 10 K Ohm

Controls Bass, treble, Channel volume

Frequency response 150 ~ 19KHz (+/- 3 dB at 1 KHz)

Dimensions (WxHxD) 482 x 44 x 180mm

Weight

1.55kg
