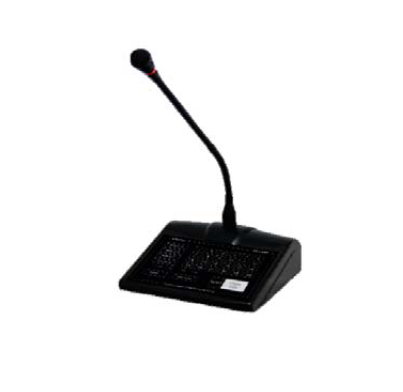

24 Zone Digital Paging Microphone (RM-5024)
Features
- Sensor touch keypad with impressive outlooks
- LED indicators for RM-5024
- Suitable for multipoint paging with priority level setup
- Improved sound output
- Built in chime
- Adjustable volume controls for chime and micrphone
Description
It is suitable 24 zones with direct soft touch buttions for individual zone and available in 4 groups with ALL CALL
Technical Specifications
| Operating voltage | 24VDC |
| Power consumption | 1.2W |
| Zone selection | 24 Zone keys, Group, All Call |
| Switching selection | Sensor touch keypad |
| Microphone | Gooseneck condenser capsule; unidirectional |
| Output impedance | 600 Ohm |
| Output level | 1.2V balanced line output |
| Output controls | Chime, mic volume |
| Data connections | RS485; 19.2 kbps |
| Cabling to decoder | 2 pair screeen; 22 AWG/Cat 5e decoder |
| Recommended operating distance | 500m subject to cable size |
| Chime | 4 tone up and 4 tone down |
| Indicators | Zone, power, audio, data, gooseneck ring LED |
| Displays | Nil |
| Frequency response | 100~12kHz |
| S/N ratio | >65dB@1 KHz |
| Gooseneck mic length | 400mm |
| Dimension (W x H x D) | 230 x 192 x 65 mm (Excluding Mic) |
|
Weight |
Appr. 1.6 kg |
