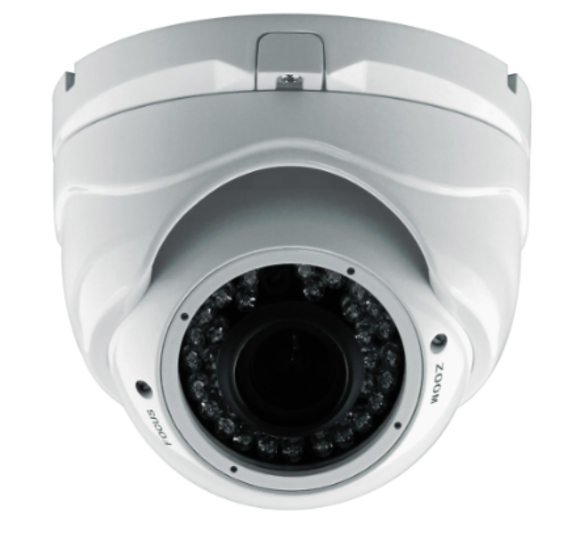

Vandalproof Analog 720p IR Dome (D720IR)
Vandalproof Analog 720p IR Dome (D720IR) Kodio HD-TVI CCTV CCTV Selangor, Malaysia, Kuala Lumpur (KL), Puchong Supplier, Installation, Supply, Supplies | Unique Amp Sdn Bhd
Key Features
Adopt 1/3" SONY 1.4 Megapixel CMOS Sensor
720p HD resolution
*  Auto Gain Control (AGC)
*  Auto Electronic Shutter (AES)
*  Gama Characteristic 0.45
*  PAL Scanning Mode

Specification
DETAILS D720IR
Pick up Element 1/ 3”SONY 1.4 Megapixel CMOS Sensor
Effective Picture Elements (HxV) 1305(H) x 1049(V)
Resolution 720P
Min illumination 0.001 lux/ F1.2
S/N Ratio More than 50dB
Scanning System Progressive
Synchronous System Internal, Negative sync.
IR Distance 20 Meters (with ¢5x24pcs Infrared LED)
Video Output TVI
Auto Gain Control Auto
NR 2D/3DNR (Auto)
White Balance Auto
Power / Current DC12V(+/-10%) 350mA
Lens Board Lens 3.6mm / F2.0
Dimension (mm) Ø89 x 76(H)
Weight (g) 450
Storage Temperature -30°~ +60°C,  RH95% MAX
Operating Temperature -10°~ +50°C,  RH95% MAX
