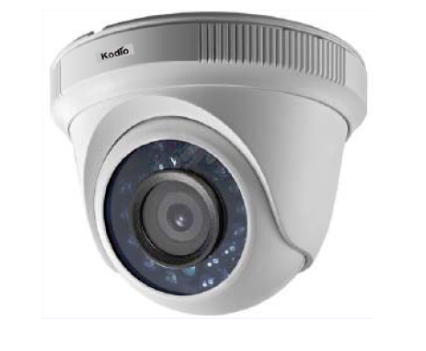

HD 720p IR Camera (HD720IR)
Key Features
* 1.0 Megapixel high-performance CMOS
* HD output, up to 720P resolution
* True Day / Night
* DNR, Smart IR
* Up to 20m IR distance
* IP66 weatherproof
Specification
_1(1).jpg)
* 1.0 Megapixel high-performance CMOS
* HD output, up to 720P resolution
* True Day / Night
* DNR, Smart IR
* Up to 20m IR distance
* IP66 weatherproof
Specification
| DETAILS | HD-720IR |
| Parameter | 720p IR Turbo HD Bullet Camera |
| Image Sensor | Progressice Scan CMOS |
| Effective Pixels | 1280(H) * 720(V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25s to 1/50,000 s |
| Lens | 3.6mm (2.8mm, 6mm optional) |
| Angle of View : 71°(3.6mm), 92°(2.8mm), 57°(6mm) | |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0-360°, Tilt: 0-90°, Rotation: 0-360° |
| Day & Night | ICR |
| Synchronization | Internal synchronization |
| Video Frame Rate | 720p@25fps / 720p@30fps |
| HD Video Output | 1 720p HD output |
| Working | -40°C - 60°C |
| Temperature / Humidity | Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC |
| Power Consumption | Max. 4W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 20m |
| Dimension | Ø89.5 x 69.8mm |
| Weight (approx.) | 260 g |
