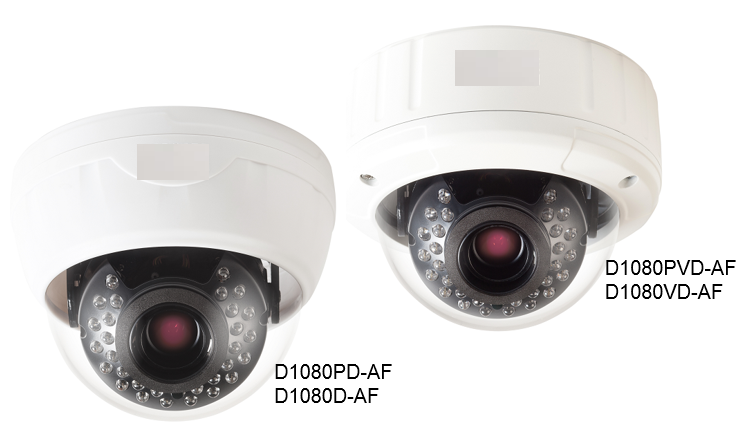

HD-CCTV Camera (D1080PD-AF/D1080D-AF/D1080PVD-AF/D1080VD-AF)
HD-CCTV Camera (D1080PD-AF/D1080D-AF/D1080PVD-AF/D1080VD-AF) Kodio HD-SDI CCTV CCTV Selangor, Malaysia, Kuala Lumpur (KL), Puchong Supplier, Installation, Supply, Supplies | Unique Amp Sdn Bhd
Key Features
[PoC Cameras : D1080PD-AF, D1080PVD-AF]
гнCamera power supply through coax (PoC)
гнZoom/Focus, OSD control, Firmware upgrade through coax (CoC)
гнProvides wired remote controller for OSD control and CVBS output

[Common Features]
гн1/3" 2.1M CMOS progressive image sensor
гнBuilt-in DoubleReachTM Transmitter
гнHD-SDI 1080p30/25, 720p30/25 or DoubleReachTM video output
гнDC Iris, 2.8mm~11mm, F1.6, IR Corrective Megapixel Lens
гнOne-Push Auto Focus, Zoom/Focus Control
гнHorizontal/Vertical resolution over 1200TV lines
гнSuperior performance under low light environment (BW : 0.0005 Lux/ Color : 0.2Lux@50IRE, F.1.2, 3100K, DSS off)
гн2 different settings of Exposure & Backlight for Daytime/Nighttime
гн3DNR (Noise Reduction)
гнBacklight compensation of WDR/BLC/HLC
гнPrivacy zone masking (Color selectable)
гнTrue Day&Night with IR cut filter removable
гнAnti-Motion Blur function for fast moving object
гнDe-Fog Function
гнTest Pattern output (Color bar, Stress Pattern)
гнDust-proof, Water-proof of IP66 (D1080PVD-AF/D1080VD-AF)


Specifications
VIDEO
Camera Models PoC Non-PoC
D1080PD-AF, D1080PVD-AF D1080D-AF, D1080VD-AF
Sensor Type 1/3” 2.1Megapixel CMOS
Total Pixels 1920(H) x 1080(V) = 2.1M pixels
Scanning System Progressive Scan
Min Illumination B/W 0.0005Lux@50IRE, F1.6, 3100K, DSS(OFF), AGC(10)
Color 0.2Lux@50IRE, F1.6, 3100K, DSS(OFF), AGC(10)
Lens Mount D-Mount
Filter True Day & Night (ICR)
Type DC Iris, 2.8~11mm, F1.6, IR Corrective Megapixel Lens
Video Output Output 1(BNC 1.0 Vp-p, 75Ω)
Resolution 1080p 30/25fps, 720p 30/25fps
Video Format HD-SDI (SMPTE 292M compatible) or DoubleReachTM Selectable
Distance HD-SDI : Max. 200m(650ft) video transmission through 5C-HFBT cable
DoubleReachTM : Max. 400m(1,200ft) video transmission through 5C-HFBT cable
Video Control Control Method OSD Menu, DVR (Supporting remote control via CoC), CMS(Control Center)
AGC 1 ~ 10 steps
Mirror Horizontal / Vertical
WDR OFF, 1 ~ 5 steps
BLC OFF, LOW, MIDDLE, HIGH
ACE OFF, ON
DNR OFF, LOW, MIDDLE, HIGH
DSS OFF, Auto, x2 ~ x10 steps
White Balance AUTO, PRESET, MANUAL
Electric Shutter INDOOR, OUTDOOR, INDOOR-ANTI BLUR, OUTDOOR_ANTI BLUR, MANUAL(12 steps)
D-ZOOM 0 ~ 16 steps
ANTI-FLICKER OFF, ON
Lens Shading OFF, ON
HLC 0 ~ 10 steps
DE-FOG OFF, ON (Auto / Manual)
Privacy OFF/ON (15 Zones )
CONTROL INTERFACE
Control CoC (Control over Coax) RS485
ELECTRICITY
Power Consumption PoC(DC24V ± 10%),  3W DC 12V ± 10%, 3W / AC 24V ± 10%, 4W
MECHANICAL
Dimension D1080PD/D Series 130(ø) x 102.5(H)mm
D1080PVD/VD Series 136.6(ø) x 106.5(H)mm
Weight D1080PD/D Series   370g
D1080PVD/VD Series   770g
ENVIRONMENTS
Operation Temp. / Humidity -10 ºC ~ 50 ºC / 0%RH ~ 80%RH
CERTIFICATIONS
Certifications KC, FCC, CE, RoHS
